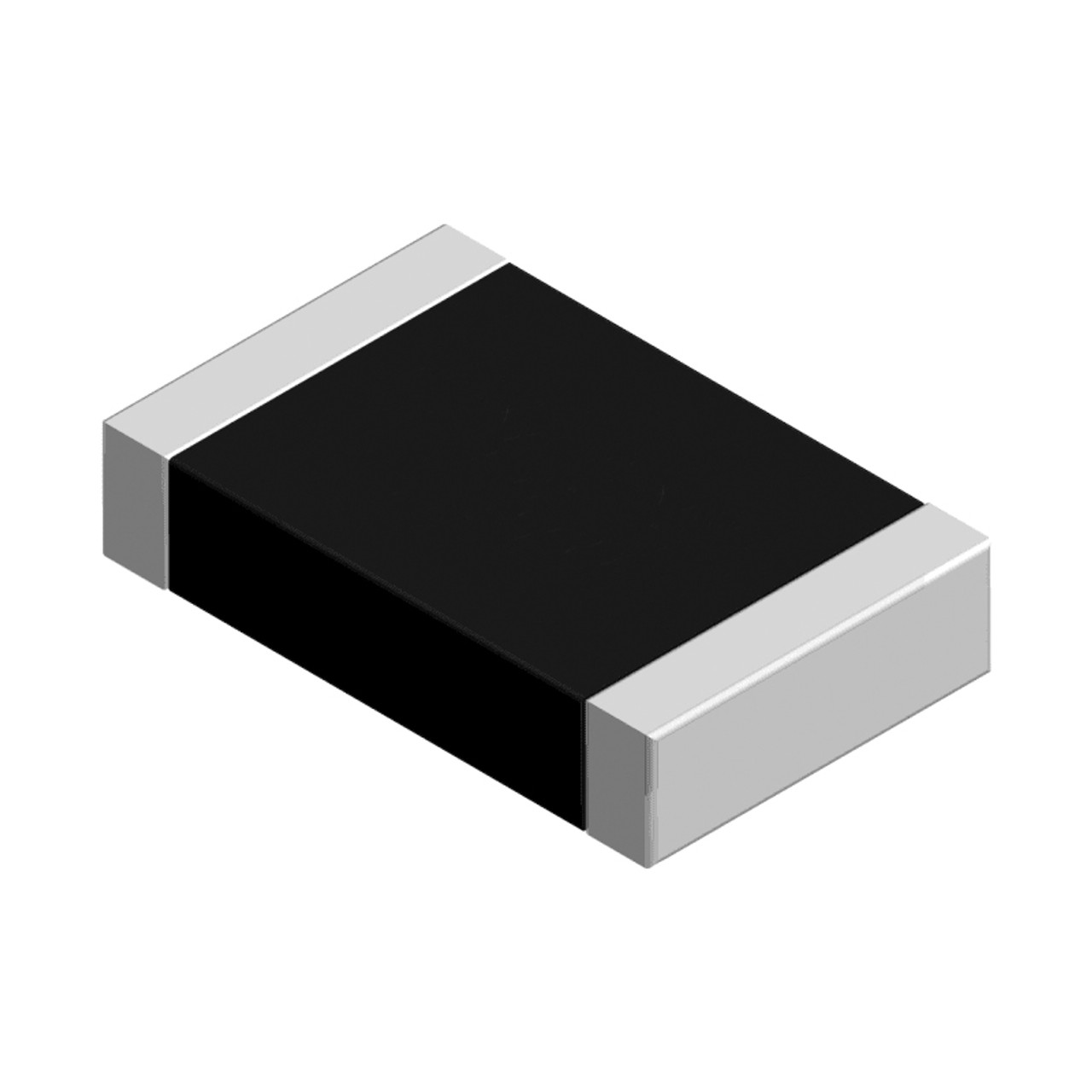

SMD Resistor – 10KΩ, 5%, 1/16W, 0402 Package
Overview:
This is a Surface Mount Device (SMD) resistor with a resistance of 10KΩ (10,000 ohms), a 5% tolerance, and a power rating of 1/16W (0.0625W). It comes in a 0402 package, making it ideal for compact PCB designs.
Key Features:
✔ Resistance: 10KΩ (10,000 ohms)
✔ Tolerance: ±5%
✔ Power Rating: 1/16W (0.0625W)
✔ Package Size: 0402 (1.0mm × 0.5mm)
✔ Low-profile, lightweight, and compact
✔ RoHS Compliant & Lead-Free
Technical Specifications:
| Parameter | Value |
|---|---|
| Resistance | 10KΩ |
| Tolerance | ±5% |
| Power Rating | 1/16W (0.0625W) |
| Package Size | 0402 (1.0mm × 0.5mm) |
| Temperature Coefficient | ±200 ppm/°C |
| Maximum Operating Voltage | 50V |
| Mounting Type | Surface Mount (SMD) |
| Material | Thick Film |
Applications:
✅ Consumer Electronics – Used in mobile devices, tablets, and laptops
✅ Embedded Systems – Suitable for microcontrollers and sensor circuits
✅ Automotive Electronics – Reliable for automotive-grade PCBs
✅ Power Supplies & Regulators – Helps with voltage division and signal conditioning
✅ IoT Devices & Wearables – Ideal for compact electronic designs
Recommended Alternatives:
🔹 ERJ-2GEJ103X (Panasonic) – High-quality thick-film resistor
🔹 CRCW040210K0JNED (Vishay) – AEC-Q200 automotive-grade alternative
🔹 RC0402JR-0710KL (Yageo) – Cost-effective thick-film resistor
Package Includes:
✔ 1 x 10KΩ SMD Resistor (0402, 5%, 1/16W)
