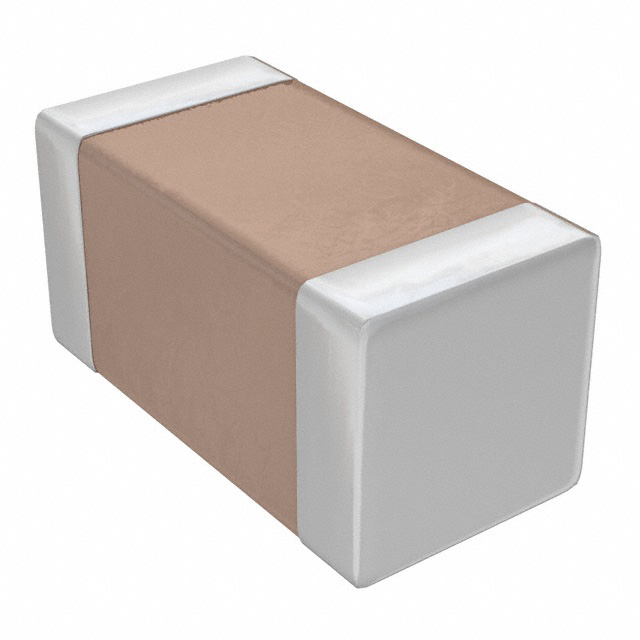

C1005X7R1H104K – Multilayer Ceramic Capacitor (MLCC) SMD
๐ Product Overview:
The C1005X7R1H104K is a multilayer ceramic capacitor (MLCC) designed for surface mount (SMD) applications. It features an X7R dielectric, making it suitable for general-purpose decoupling, filtering, and bypassing applications in consumer, industrial, and automotive electronics.
๐ Key Specifications:
โ Capacitance: 100nF (0.1ยตF)
โ Voltage Rating: 50V
โ Tolerance: ยฑ10%
โ Dielectric Type: X7R (Stable over temperature changes)
โ Package Size: 0402 (1.0mm ร 0.5mm)
โ Operating Temperature Range: -55ยฐC to +125ยฐC
โ ESR (Equivalent Series Resistance): Low
โ RoHS Compliant & Lead-Free
๐ Applications:
๐ Power Supply Filtering โ Reduces noise and stabilizes power lines
๐ Decoupling & Bypassing โ Used in microcontrollers, FPGAs, and ICs
๐ Signal Conditioning โ For high-speed digital and RF circuits
๐ Automotive & Industrial Electronics โ High-reliability applications
๐ Consumer Electronics โ Smartphones, tablets, and wearables
๐ฆ Recommended Replacements & Alternatives:
๐น Murata GRM155R71H104KA88D โ Equivalent 100nF, 50V, X7R, 0402
๐น Samsung CL05B104KO5NNNC โ 100nF, 50V, X7R, 0402
๐น TDK C1005X7R1H104KT โ 100nF, 50V, X7R, 0402
๐ก Perfect for compact PCB designs requiring stable capacitance over varying temperatures! ๐
