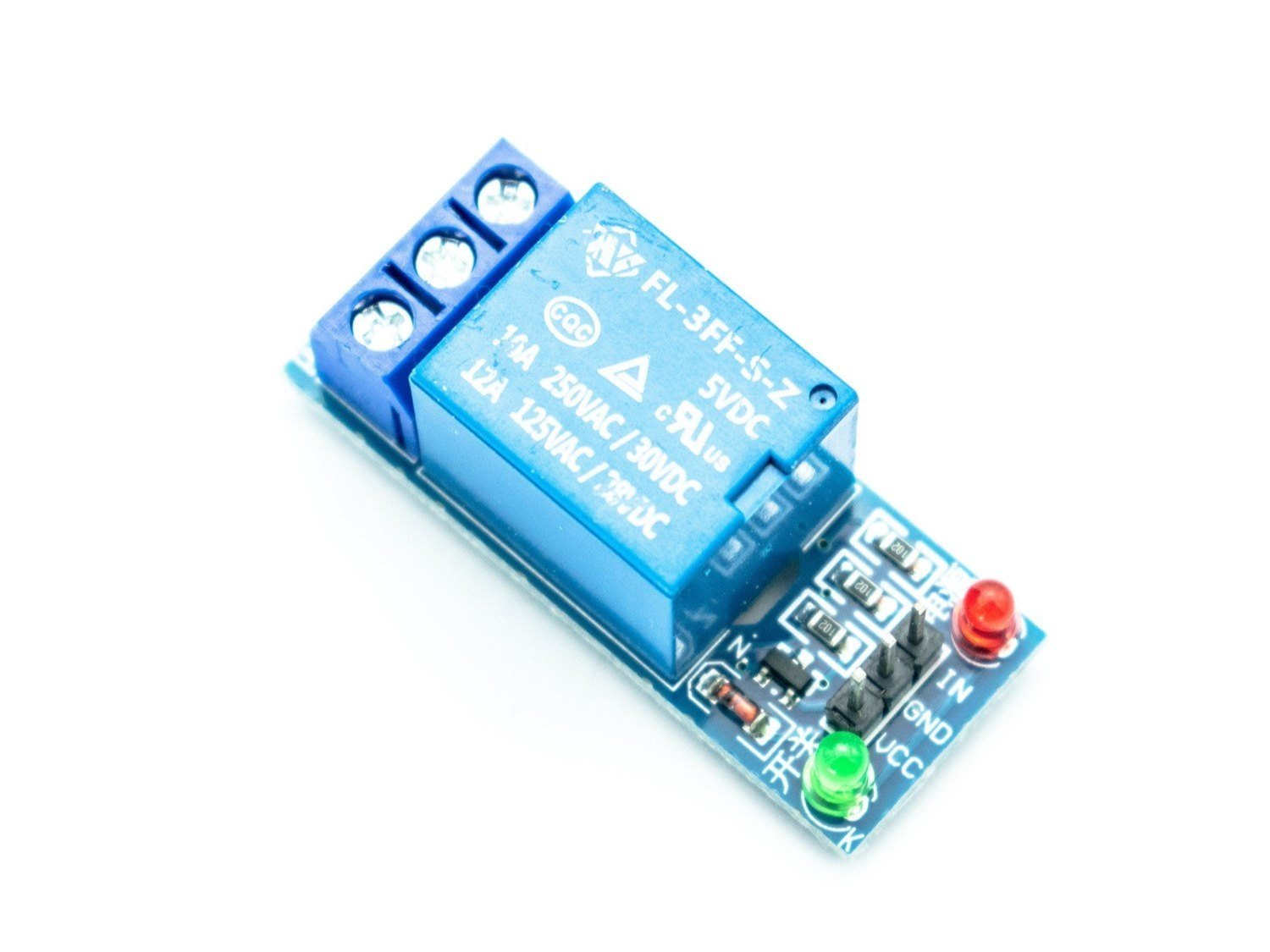

Single channel Relay One(1) channel Relay moduleSingle-Channel Relay Module – 5V 1-Channel Relay Board for Arduino and Microcontrollers
Product Overview: Easily control high-voltage devices with this reliable Single-Channel Relay Module. Designed for compatibility with Arduino, Raspberry Pi, and other microcontrollers, this relay module allows you to safely switch on and off AC or DC loads up to 10A. Perfect for home automation, robotics, and other DIY electronics projects, this module provides a simple and effective way to control appliances, lights, motors, and more.
Key Features:
High-Quality Relay: Equipped with a 5V relay capable of switching up to 250V AC or 30V DC loads with a current of up to 10A.
Optocoupler Isolation: Features optocoupler isolation to protect your microcontroller from high voltage spikes and interference.
Easy Integration: Compatible with Arduino, Raspberry Pi, ESP8266, and other microcontroller platforms with a simple control interface.
Indicator LEDs: Onboard LED indicators for power and relay status provide visual feedback during operation.
Compact Design: Small form factor makes it easy to integrate into a variety of electronic projects.
Specifications:
Relay Type: 5V Single-Channel Relay
Operating Voltage: 5V DC
Control Signal: Low-level trigger (active low)
Contact Rating: 10A at 250V AC, 10A at 30V DC
Optocoupler Isolation: Yes
Interface: 3-pin header for control signal (VCC, GND, IN)
Dimensions: 50mm x 26mm x 18.5mm (L x W x H)
Weight: 20g
Applications:
Home Automation: Control lights, fans, and other household appliances remotely or automatically.
DIY Electronics: Integrate with microcontroller projects for custom automation and control systems.
Robotics: Use to control motors, actuators, and other high-power components in robotic systems.
Safety Systems: Implement in security systems to control alarms, door locks, and other safety devices.
Smart IoT Devices: Build smart devices and Internet of Things (IoT) projects that can interact with high-voltage components.
Package Includes:
1 x Single-Channel Relay Module
1 x Jumper Wires Set
1 x User Manual
Why Choose This Relay Module?
Safety: Optocoupler isolation protects your microcontroller from high voltages.
Reliability: High-quality relay ensures stable operation for a wide range of loads.
Versatility: Ideal for a broad spectrum of projects, from home automation to robotics.
Ease of Use: Simple wiring and control interface make it perfect for beginners and experienced makers alike.
