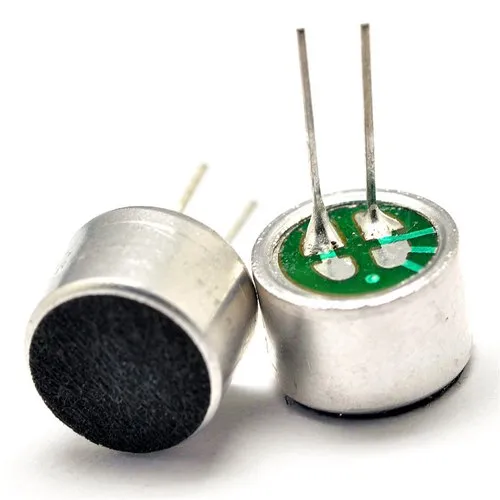

Electret Condenser Microphone
Part no.GH₵6.25
Electret Condenser Microphone Overview: The electret condenser microphone is a small, cost-effective, and reliable microphone, perfect for capturing high-quality audio in a wide range of applications. Known for its sensitivity and low noise, this microphone is widely used in devices such as smartphones, hearing aids, and recording equipment.
In stock · 24 availableShips from Accra · Fast delivery across all 16 regions of Ghana and beyond!
- Same-day dispatch in Accra for orders before 14:00
- Pay securely with Mobile Money or card
- Genuine parts, tested before dispatch
Overview
Electret Condenser Microphone
Overview: The electret condenser microphone is a small, cost-effective, and reliable microphone, perfect for capturing high-quality audio in a wide range of applications. Known for its sensitivity and low noise, this microphone is widely used in devices such as smartphones, hearing aids, and recording equipment.
Key Features:
Type: Electret condenser
Operating Voltage: 2V - 10V DC
Impedance: 2.2kΩ
Sensitivity: -44dB ± 2dB
Frequency Response: 20Hz - 20kHz
Signal-to-Noise Ratio: > 60dB
Omnidirectional Pickup: Captures sound from all directions
Applications:
Voice recognition systems
Audio recording devices
Hands-free communication devices
Surveillance systems
Portable electronics
Specifications:
Diameter: 6mm
Height: 5mm
Pin Configuration: 2-pin
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -30°C to +70°C
Package Includes:
1x Electret Condenser Microphone
Compliance:
RoHS compliant
Notes:
Requires external biasing resistor and capacitor for operation in most circuits.
