DM542 Stepper Motor Driver

Description

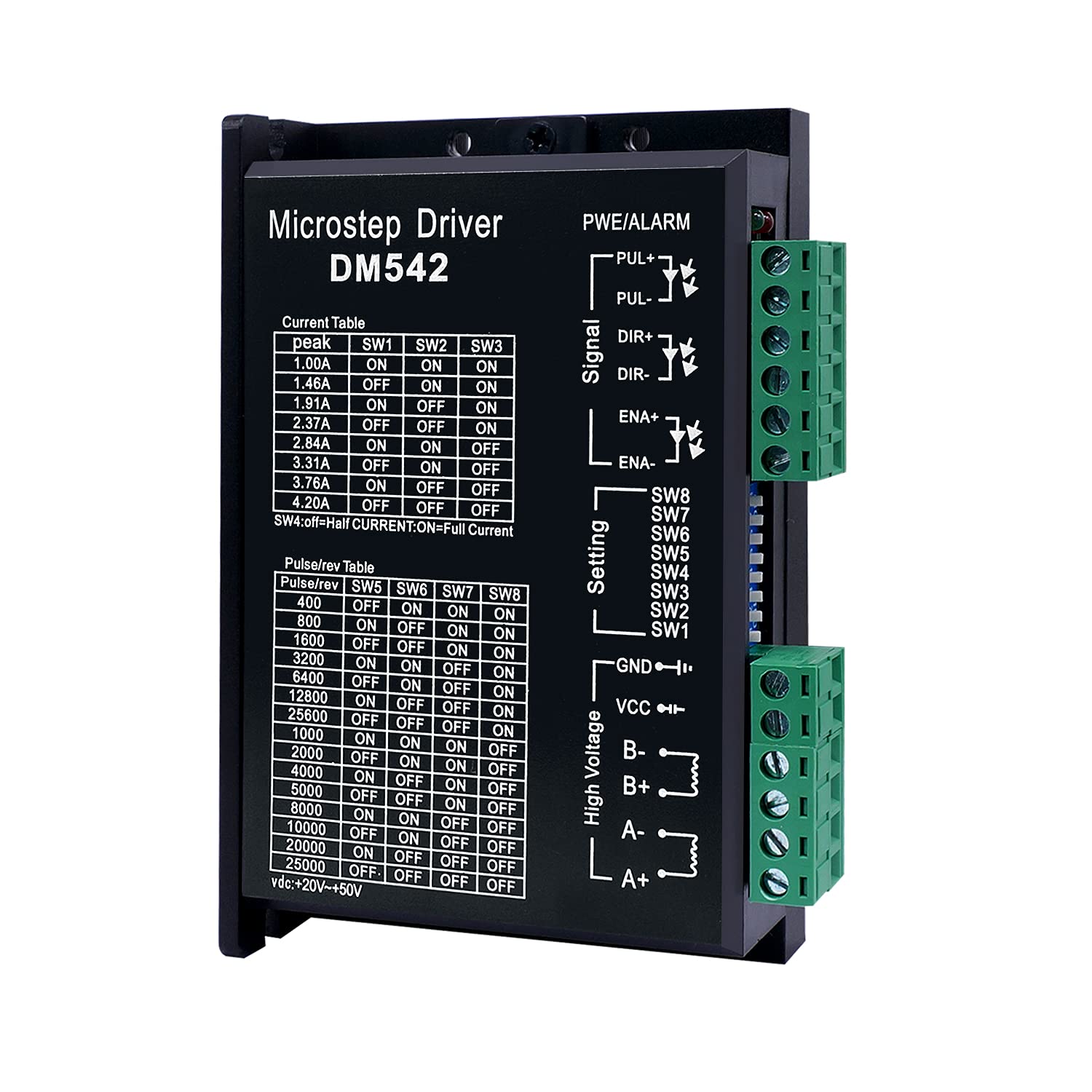

DM542 Stepper Motor Driver

Product Overview:

The DM542 is a digital stepper motor driver designed to control two-phase hybrid stepper motors with high precision and efficiency. It supports a wide range of stepper motors, typically NEMA 17, 23, and 34, providing smooth motion, reduced heat, and enhanced torque output. This driver is well-suited for CNC machines, robotics, 3D printers, and automation systems requiring precise positioning and speed control.

---

Key Specifications:

• Input Voltage: 18V – 50V DC
• Output Current: 1.0A – 4.2A (Adjustable via DIP switches)
• Microstepping Resolution: Full step, 1/2, 1/4, 1/8, 1/16, 1/32
• Pulse Input Frequency: 0 – 200kHz
• Logic Signal Voltage: 3.3V – 5V (Compatible with most controllers)
• Motor Compatibility: Two-phase stepper motors (NEMA 17, NEMA 23, NEMA 34, etc.)
• Control Mode: Pulse/Direction (PUL/DIR) or Enable (ENA)
• Idle Current Reduction: Automatically reduces to 50% when idle to prevent overheating
• Protection Features: Overvoltage, undervoltage, overcurrent, and short-circuit protection
• Operating Temperature: -10°C to +45°C
• Dimensions: 118mm x 75.5mm x 33mm
• Weight: ~280g

---

Applications:

✔ CNC Machines – Controls stepper motors for precise positioning in milling, engraving, and cutting machines.
✔ 3D Printers – Drives the stepper motors for accurate layer-by-layer printing.
✔ Robotics – Ideal for robotic arms, automated systems, and mechatronics projects.
✔ Laser Engraving Machines – Ensures smooth and precise movement for high-quality engravings.
✔ Pick-and-Place Machines – Used in electronics manufacturing for component placement.
✔ Automation & Industrial Control – Used in conveyor belts, packaging systems, and motion control applications.

---

Features & Benefits:

✔ High-Precision Microstepping – Provides smoother motion with minimal vibration and noise.
✔ Wide Voltage Range – Works with various power supplies from 18V to 50V DC.
✔ Adjustable Current Output – Optimized performance for different motor sizes.
✔ Automatic Idle Current Reduction – Reduces power consumption and heating when inactive.
✔ Robust Protection Mechanisms – Prevents motor and driver damage due to electrical faults.
✔ Simple Wiring & Integration – Compatible with Arduino, Raspberry Pi, GRBL, and other CNC controllers.
