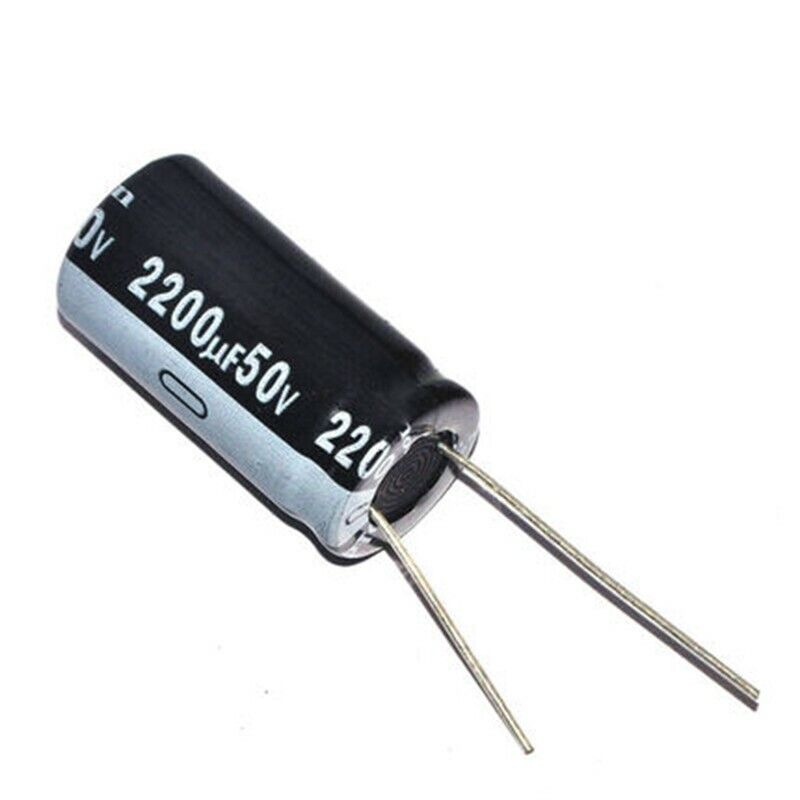

2200µF 50V Aluminum Electrolytic Capacitor (Radial Leaded)
🧾 Product Overview:
The 2200µF 50V aluminum electrolytic capacitor is a high-capacity energy storage component designed for power supply smoothing, decoupling, and bulk energy storage in medium-to-high voltage circuits. Its large capacitance and voltage rating make it ideal for high-current, high-power applications such as motor drives, audio amplifiers, industrial power systems, and switch-mode power supplies (SMPS).
📐 Key Specifications:
| Parameter | Specification |
|---|---|
| Capacitance | 2200 µF |
| Rated Voltage | 50V DC |
| Capacitor Type | Aluminum Electrolytic (Polarized) |
| Tolerance | ±20% (typical) |
| Mounting Type | Radial Through-Hole |
| Ripple Current | ~1300–2500 mA RMS (varies by brand/series) |
| ESR | Medium to Low (dependent on series) |
| Operating Temperature | -40°C to +105°C (up to 125°C for some variants) |
| Dimensions | ~18–22mm diameter × 30–50mm length |
| Lead Spacing | 7.5mm / 10mm typical |
| RoHS Compliant | Yes |
🧰 Applications:
-
⚡️ Bulk Filtering in Power Supply Output Stages
-
🎚️ High-power Audio Amplifiers
-
🔧 DC Bus Smoothing in Motor Drives & Inverters
-
🔋 UPS and Battery Charging Systems
-
🔌 Switching Power Supplies (SMPS)
-
💡 High-power LED Drivers & Controllers
⭐ Key Features:
-
✅ Very high energy storage for bulk filtering
-
✅ Excellent performance under high ripple currents
-
✅ Reliable performance over a wide temperature range
-
✅ Suitable for industrial and consumer-grade electronics
📦 Popular Series & Example Part Numbers:
| Manufacturer | Part Number | Notes |
|---|---|---|
| Nichicon | UHE1H222MHD | High-temp, general-purpose |
| Panasonic | EEU-FR1H222 | Low ESR, 105°C |
| Rubycon | 50ZLJ2200ME1 | Compact, high ripple capability |
| Samwha | RD2H222M05011 | Cost-effective, standard grade |
🔁 Alternative Ratings (if space or voltage margin is a concern):
| Capacitance | Voltage | Typical Use Case |
|---|---|---|
| 2200µF 35V | For 24–30V systems with lower space constraints | |
| 1000µF 50V | Used when a smaller footprint or less energy is acceptable | |
| 4700µF 50V | For even higher ripple smoothing in large systems |
