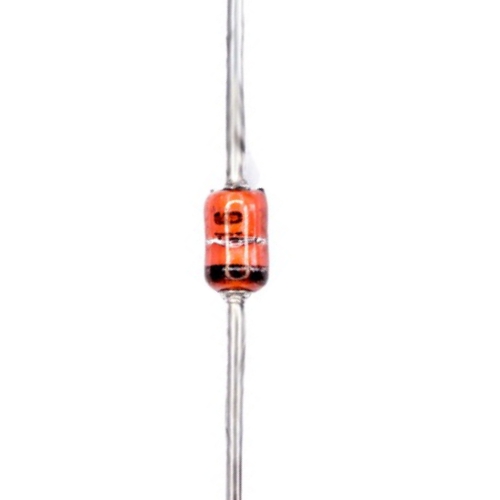

1N4148 Signal switching Diode
Part no.GH₵2.00
1N4148 Fast Switching Diode Overview: The 1N4148 is a high-speed switching diode known for its fast switching time and reliability. It's commonly used in a wide range of electronic circuits, especially where high-speed switching is required. This diode is a staple in many electronics projects due to its low cost and efficient performance.
In stock · 145 availableShips from Accra · Fast delivery across all 16 regions of Ghana and beyond!
- Same-day dispatch in Accra for orders before 14:00
- Pay securely with Mobile Money or card
- Genuine parts, tested before dispatch
Overview
1N4148 Fast Switching Diode
Overview: The 1N4148 is a high-speed switching diode known for its fast switching time and reliability. It's commonly used in a wide range of electronic circuits, especially where high-speed switching is required. This diode is a staple in many electronics projects due to its low cost and efficient performance.
Key Features:
Reverse Voltage: 100V
Forward Current: 300mA
Forward Voltage Drop: 1V at 10mA
Recovery Time: 4ns (typical)
Package: DO-35
Applications:
Signal processing
Switching circuits
High-speed rectification
Voltage clamping
Logic circuits
Specifications:
Max Repetitive Peak Reverse Voltage: 100V
Max Continuous Forward Current: 300mA
Max Non-Repetitive Peak Forward Current: 1A
Reverse Recovery Time: 4ns
Operating Temperature Range: -65°C to +200°C
Dimensions:
Lead Diameter: 0.5mm
Body Length: 4mm
Body Diameter: 1.5mm
Compliance:
RoHS compliant
Package Includes:
1x 1N4148 Fast Switching Diode
