Description

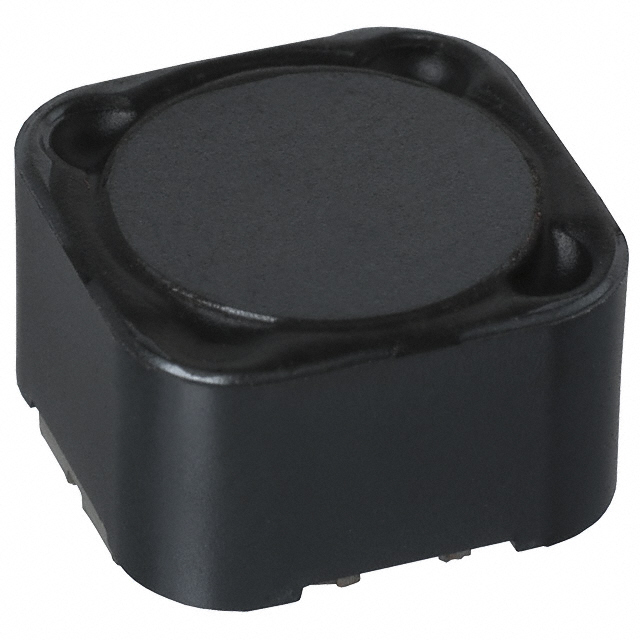

CDRH4D28NP-100NC – 10µH SMD Power Inductor
The CDRH4D28NP-100NC is a 10µH surface-mount power inductor designed for DC-DC converters, power supplies, and filtering applications. It features a shielded construction, ensuring minimal electromagnetic interference (EMI).
Key Features:
✔ Inductance: 10µH ±30%
✔ Current Rating: 1.00A
✔ Low DCR (DC Resistance): 0.133Ω max
✔ Shielded Structure for Reduced EMI
✔ Compact Size: 4.5mm × 4.5mm × 3.0mm
Specifications:
| Parameter | Value |
|---|---|
| Inductance | 10µH ±30% |
| Rated Current | 1.00A |
| Saturation Current (Isat) | ~1.1A |
| DC Resistance (DCR) | 0.133Ω max |
| Self-Resonant Frequency (SRF) | ~9MHz |
| Operating Temperature | -40°C to +105°C |
| Core Material | Ferrite |
| Shielding | Yes (Magnetic Shielding) |
| Mounting Type | SMD (Surface Mount) |
| Package Size | 4.5 × 4.5 × 3.0mm |
Applications:
✅ DC-DC Converters (Boost, Buck, and Buck-Boost)
✅ Power Supply Filters
✅ LED Drivers
✅ Battery-Powered Devices
✅ Consumer Electronics & IoT Devices
Package Includes:
✔ 1 x CDRH4D28NP-100NC 10µH SMD Power Inductor
