Description

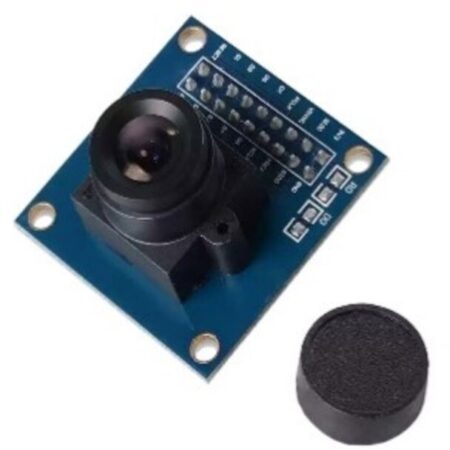

The 0V7670 Camera Module is a compact, high-quality image sensor designed for use in various embedded systems and DIY electronics projects. This camera module is widely used in applications that require image capturing or video streaming capabilities, such as robotics, surveillance systems, or visual data processing. It supports both still image and video output, making it versatile for a range of uses.
Key Features:
- High-Quality Image Sensor: The 0V7670 camera provides clear and detailed image capture with resolutions suitable for various applications.
- Built-In FIFO Buffer: The module has an integrated FIFO (First In First Out) buffer, which helps in storing captured frames for smoother image processing.
- Low Power Consumption: Designed to be energy-efficient, this module can operate in low-power environments, making it ideal for battery-operated systems.
- Versatile Resolution: Offers multiple resolutions, including VGA (640×480) and CIF (352×288), allowing for flexible image capture quality.
- Compact and Easy to Use: The small form factor makes it easy to integrate into space-constrained projects or portable devices.
- Interface Compatibility: It can be interfaced with microcontrollers or development boards (such as Arduino, Raspberry Pi, or ESP32) through a parallel interface.
- Video Output: Provides real-time video streaming capabilities, enabling live transmission or processing of the captured video feed.
Specifications:
- Sensor Type: CMOS image sensor
- Resolution: VGA (640×480), CIF (352×288)
- Interface: Parallel (works with controllers like Arduino or Raspberry Pi)
- Output Format: YUV422, RGB565 (depending on configuration)
- Power Supply: Typically 3.3V or 5V (depending on the module version)
- Frame Rate: Up to 30fps at VGA resolution
- Lens Type: Built-in lens with a fixed focal length, suitable for general-purpose image capture
- Dimensions: Small and compact for easy integration into various projects
- Operating Temperature: Suitable for indoor and mild outdoor environments
Applications:
- Robotics: Ideal for adding vision capabilities to robots for object detection, navigation, and face recognition.
- Surveillance Systems: Can be used in DIY security camera systems or in smart home surveillance projects.
- Image Processing Projects: Perfect for projects that require real-time image or video capture and processing.
- Video Streaming: Can be used in applications that require live video feed for remote monitoring or data analysis.
- Embedded Systems: Excellent for adding camera functionality to embedded devices, such as drones, wearables, or IoT devices.
Package Includes:
- 1 x 0V7670 Camera Module
- 1 x Jumper Wires or Connectors (depending on the supplier)
- 1 x User Manual or Datasheet (if available)
